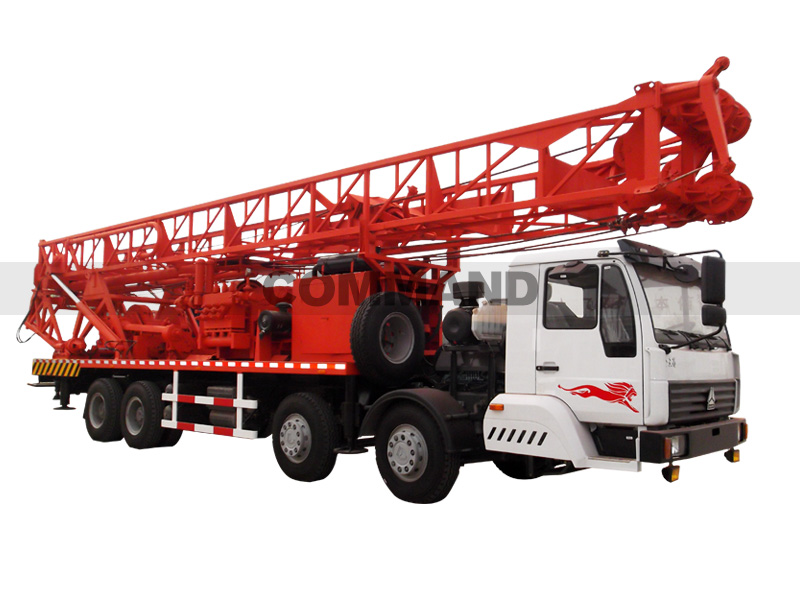

Depth：1000M-1150M
Aperture：650MM
Dimensions；13000mm×2500MM×4150MM
Total Weight：26500KG
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.
| A.CHASSIS | ||||
| Code | Name | Model | Parameter | Remarks |
| A01 | Truck chassis |
Special Purpose for Engineering truck |
Manufacturer： SINO TRUCK Driving form： 6×4/ 6×6/ 8×4/ 8×8 |
|
| B.Drilling tower, Second floor chassis | ||||
| Code | Name | Model | Parameter | Remarks |
| B01 |
Drilling tower |
Truss type |
Drill tower load:60T Operation：Two hydraulic support cylinders Drill tower height：15M |
|
| B02 |
Second floor chassis |
Connecting drill rig and truck chassis |
Brace： Four hydraulic leg cylinders Equipped with hydraulic lock to prevent leg retraction |
|
| C.Drilling rig power | ||||
| Code | Name | Model | Parameter | Remarks |
| C01 | Diesel engine | WEICHAI DEUTZ |
Power:265KW Type：Six Cylinders, Water Cooling and Mechanical Supercharging Revolutions:1800R/MIN Compression Ratio：18:1 |
|
| C02 | Diesel Engine Monitor |
Matching |
Monitoring information such as speed, temperature and so on through diesel engine sensors |
|
| D. Mud pump | ||||
| Code | Name | Model | Parameter | Remarks |
| D01 | Mud pump | BW1500/12 |
Type：Four Cylinder Maximum pressure：12MPA Cylinder liner diameter：150MM MAXIMUM DISPLACEMENT：1500L/MIN |
|
| D02 | Matching pipe | complete set |
Inner diameter of drainage pipe：3.5' Inner diameter of suction pipe: 6' |
|
| E. hoist | ||||
| Code | Name | Model | Parameter | Remarks |
| E01 | Main hoist |
Single rope pull up：10T Hook load：10T×6=60T |
||
| E02 | Tool hoist | Single rope pull up：3T | ||
| F. Rotation form rotary table | ||||
| Code | Name | Model | Parameter | Remarks |
| F01 | Rotary table | CT-1 |
Gear position： 7 positive turns，1 reversals Torque：NM Foreward：13000/8890/5530/4465/3376/2113/1361 Reversal：8965 Revolutions：RPM Foreward：27/35/49/80/99/131/208 Reversal：35 |
|
| G.Transmission case | ||||
| Code | Name | Model | Parameter | Remarks |
| G01 | Transmission case | 7DS-100 | Input torque：1000NM | |
| H.Other Parts and Components | ||||
| Code | Name | Model | Parameter | Remarks |
| H01 | Alternator | STC-30KW |
Rated Power：30KW Rated Current:72.2A Rated Speed：1500RPM |
|
| I. operating system | ||||
| Code | Name | Model | Parameter | Remarks |
| I01 | Control box |
Integrated console Lifting and boring tower, outrigger cylinder, lifting, lowering, clutch, shifting, etc. Instrument: drilling tool weight gauge, system pressure gauge, etc. |
|
|
