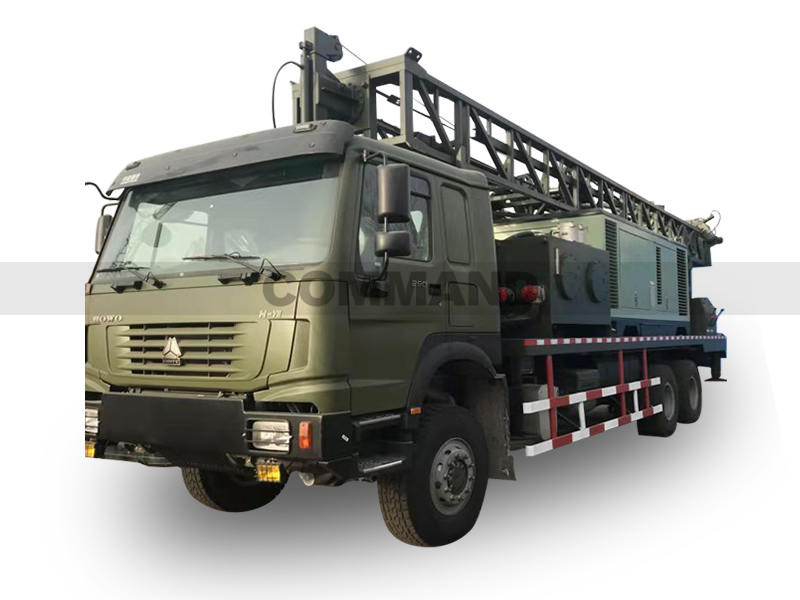

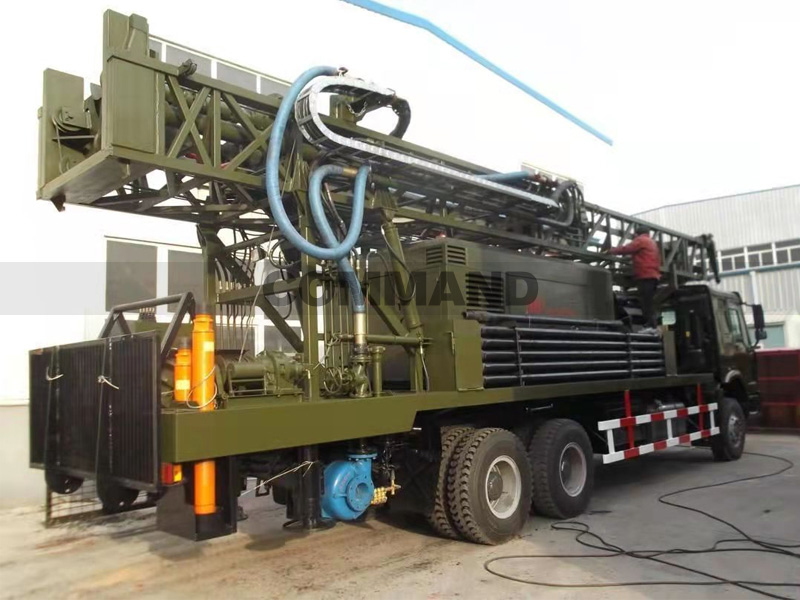

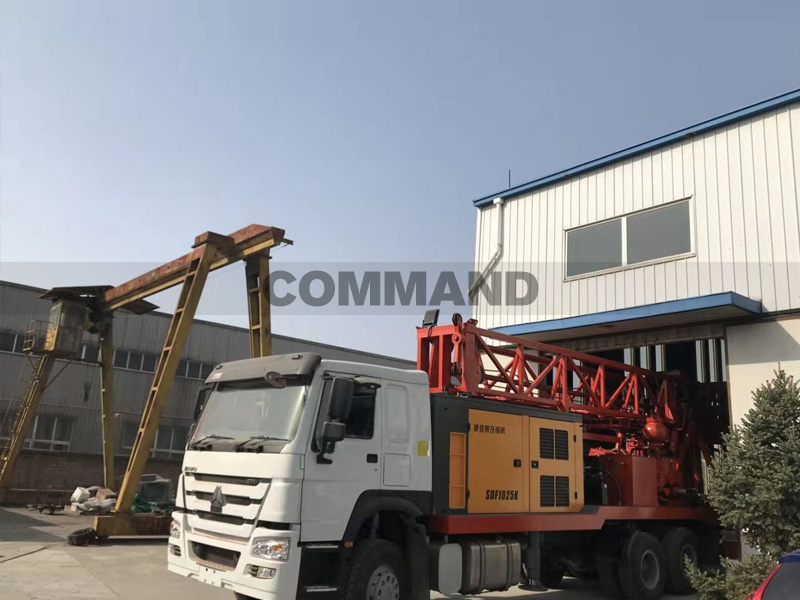

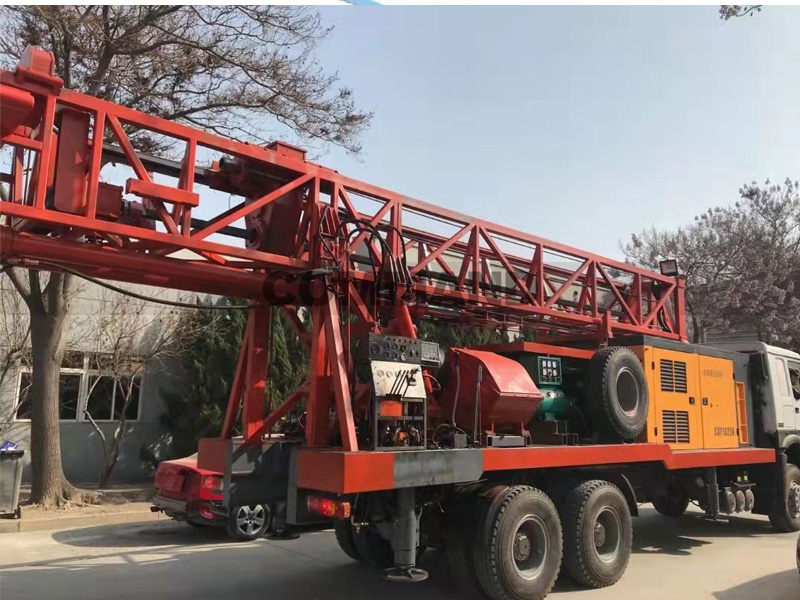

Depth：300M
Aperture：100MM-1800MM
Dimensions；12000mm×2500MM×4150MM
Total Weight：27500KG
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer."
| A.CHASSIS | ||||
| Code | Name | Model | Parameter | Remarks |
| A01 | Truck chassis | Special Purpose for Engineering truck |
Manufacturer： SINO TRUCK Driving form：6×4 6×6 |
|
| B.Drilling tower, Second floor chassis | ||||
| Code | Name | Model | Parameter | Remarks |
| B01 | Drilling tower | Truss type |
Drill tower load:40T Operation：Two hydraulic support cylinders Drill tower height：10M |
|
| B02 | Pull up-Pull down cylinder |
Cylinder-wire rope structure |
Pull down:11T Pull up: 25T |
|
| B03 |
Second floor chassis |
Connecting drill rig and truck chassis |
Brace： Four hydraulic leg cylinders Equipped with hydraulic lock to prevent leg retraction |
|
| C. Drilling rig power | ||||
| Code | Name | Model | Parameter | Remarks |
| C01 | Diesel engine | WEICHAI DEUTZ |
Power:120KW Type：Six Cylinders, Water Cooling and Mechanical Supercharging Revolutions:1800R/MIN |
|
| C02 | Diesel Engine Monitor |
Matching |
Monitoring information such as speed, temperature and so on through diesel engine sensors |
|
| D. Mud pump | ||||
| Code | Name | Model | Parameter | Remarks |
| D01 | Mud pump | BW600/30 |
Type：Double Cylinder Reciprocating Double-acting Piston Pump Maximum pressure：3MPA Cylinder liner diameter：130MM MAXIMUM DISPLACEMENT：720L/MIN |
|
| D02 | Matching pipe |
complete set |
Inner diameter of drainage pipe：3' Inner diameter of suction pipe: 4' Internal Diameter of Backwater Pipe：2' |
|
| E Tool hoist | ||||
| Code | Name | Model | Parameter | Remarks |
| E01 | Hoist | ZYJ2B | Single rope pull up：2T | |
|
F. Rotation form It has the advantages of hydraulic power head and rotary table |
||||
| Code | Name | Model | Parameter | Remarks |
| F01 | Power head |
Mechanical |
Gear position：5 positive turns， 1 reversals Torque：10000NM Foreward：10000/4789/2799/1758/1234 Reversal：7599 Revolutions：RPM Foreward：23/41/71/113/161 Reversal：26 |
|
| G.Transmission case | ||||
| Code | Name | Model | Parameter | Remarks |
| G01 | Transmission case | Input torque：1000NM | ||
| H. Other Parts and Components | ||||
| Code | Name | Model | Parameter | Remarks |
| H01 | Alternator | STC-30KW |
Rated Power：30KW Rated Current:72.2A Rated Speed：1500RPM |
|
| I.operating system | ||||
| Code | Name | Model | Parameter | Remarks |
| I01 | Control box |
Integrated console Lifting and boring tower, outrigger cylinder, lifting, lowering, power head clutch, power head shifting, etc. Instrument: drilling tool weight gauge, system pressure gauge, etc. |
|
|
| J.compressor | ||||
| Code | Name | Model | Parameter | Remarks |
| J05 | Air compressor |
Exhaust volume：29m³/MIN Exhaust pressure：2.4MPA |
|
|
