  • CDC-600JK Mechanical top head drilling rig

CDC-600JK Mechanical top head drilling rig

Application :
for drilling water well

Introduction

Depth:600M-670M
Aperture:2000MM
Dimensions;12000mm×2500MM×4150MM
Total Weight:16500KG
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.

Parameter

A. CHASSIS

Code

Name

Model

Remarks

A01

 Truck chassis


See the quotation for details
Can be selected according to customer requirements
If we can have our own chassis, we can also customize it according to the customer's chassis


SINOTRUK

DONGFENG

B.Drilling tower, Second floor chassis

Code

Name

Model

Parameter

Remarks

B01


Drilling tower


Retractable

Drill tower load:30T
Operation:Two hydraulic support cylinders
Drill tower height:7M


B02


Pull up-Pull down cylinder



Pull down:11T
Pull up:20T

B03


Outrigger cylinder

Brace:Four hydraulic leg cylinders
Equipped with hydraulic lock to prevent leg retraction


C.Drilling rig power

Code

Name

Model

Parameter

Remarks

C01

Diesel engine

Special diesel engine for drilling rig

Rated power:132KW
Maximum power:153KW
Revolutions:1500RPM
Upgrade according to drilling rig construction characteristics


D.Tool hoist

Code

Name

Model

Parameter

Remarks

E01

Hoist

ZYJ2B

Single rope pull up:2T


E.Rotation form
Hydraulic power head

Code

Name

Model

Parameter

Remarks

F01

Power head



Torque:9500NM   Revolutions:0-90 RPM


G.Operating system

Code

Name

Model

Parameter

Remarks

G01

Control box


Integrated console
Lifting and boring tower, outrigger cylinder, lifting, lowering, power head , etc.
Instrument: drilling tool weight gauge, system pressure gauge, etc.



H.Air compressor + mud pump

Code

Name

Model

Parameter

Remarks

H01

Air compressor



PRESS:2.4MPA                          AIR VOLUME:29 m³/MIN


H02

Mud pump

BW600/30

Type:
Double Cylinder Reciprocating Double-acting Piston Pump
Maximum pressure:3MPA
Cylinder liner diameter:130MM
MAXIMUM DISPLACEMENT:720L/MIN




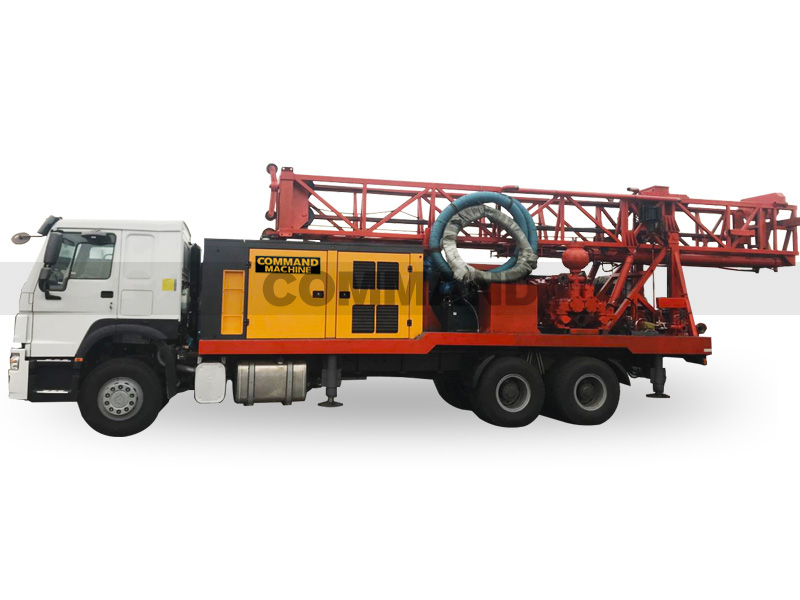

Product pictures
